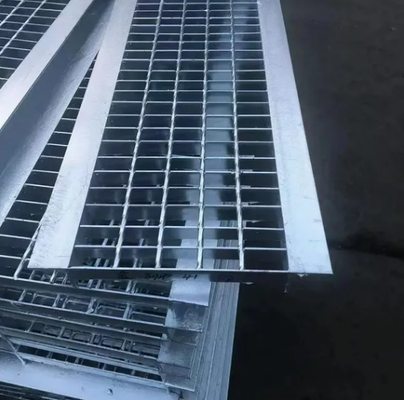

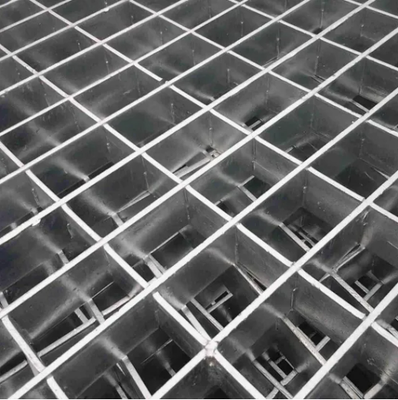

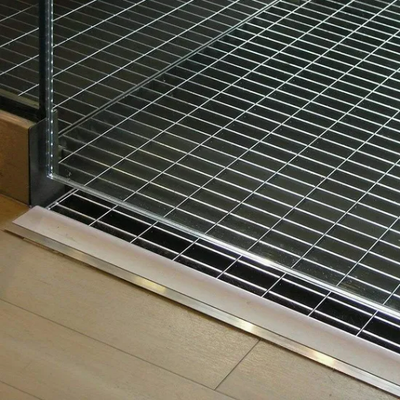

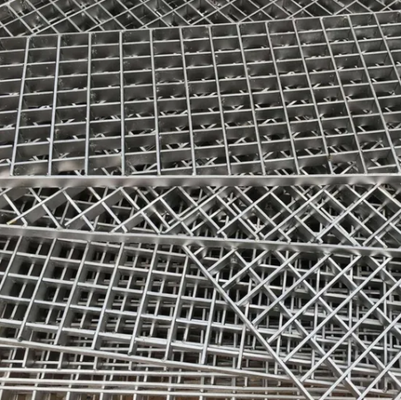

Hot DIP Galvanized Steel Grating with 25x5mm Bearing Bar and Serrated Style for Industrial Walkways

Galvanized grating consists of metal grates that undergo a specialized zinc coating process called galvanization. This treatment creates a protective barrier that significantly enhances the material's resistance to rust and corrosion. GNEE Steel provides premium grating manufactured from high-strength steel, offering superior structural integrity while withstanding harsh environmental conditions.

Hot DIP galvanized metal grating has three kinds of steel gratings: Plain Style Steel Grating, Serrated Style Steel Grating and I Bar Type Steel Grating. They are widely used in steel structure platforms, stair treads, sidewalks, drainages and well covers. We can design and manufacture standard steel grating and customized shapes per client's requirements.

Plain type and serrated type bearing bar: 20 x 3 to 100 x 10 mm

I-section type: 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.

12.5, 15, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm (30, 40, 60mm recommended)

American standard available: 1" x 3/16", 1 1/4" x 3/16", 1-1/2" x 3/16", 1" x 1/4", 1-1/4" x 1/4", 1 1/2" x 1/4" (19-w-4) and more

38.1, 40, 50, 60, 76, 80, 90, 100, 101.6, 102, 135mm and more

Mild Steel (Low Carbon Steel) or Stainless Steel

Untreated, Painting or Hot DIP Galvanizing

• China: YB/T4001-1998
• USA: ANSI/NAAMM (MBG531-88)
• UK: BS4592-1987
• Australia: AS1657-1985
• Japan: JJS
