Round Hole Perforated Metal Mesh Stainless Steel Punching Mesh

نظرات مشتریان
رعد من امروز آمد و کاملا مناسب بود. متشکرم. اجازه دهید به من بفهمم که در هر کجا که می توانم بازخورد مثبت در مورد شرکت شما بگذارم!

—— اندرو مولن

چت IM آنلاین در حال حاضر

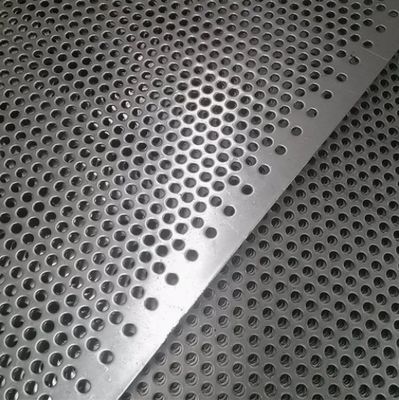

Round Hole Perforated Metal Mesh Stainless Steel Punching Mesh

Round Hole Perforated Metal Mesh Stainless Steel Punching Mesh
Round Hole Perforated Metal Mesh Stainless Steel Punching Mesh Round Hole Perforated Metal Mesh Stainless Steel Punching Mesh Round Hole Perforated Metal Mesh Stainless Steel Punching Mesh

تصویر بزرگ :  Round Hole Perforated Metal Mesh Stainless Steel Punching Mesh

جزئیات محصول:
محل منبع: چین
نام تجاری: GNEE
گواهی: SGS
پرداخت:
قیمت: negotiable
جزئیات بسته بندی: بسته بندی ارزشمند دریا ، یعنی سینی چوبی یا فولادی با نوار فولادی و غیره
زمان تحویل: 5-9 روز کاری
شرایط پرداخت: قابل مذاکره
قابلیت ارائه: 100 تن در هفته

Round Hole Perforated Metal Mesh Stainless Steel Punching Mesh

شرح
برجسته کردن:

stainless steel perforated metal mesh,round hole punching mesh,perforated metal mesh with warranty

,

round hole punching mesh

,

perforated metal mesh with warranty

Round Hole Perforated Metal Mesh Stainless Steel Punching Mesh
Product Description

Raw Materials: Stainless Steel, Carbon Steel, Galvanized Sheet, PVC Sheet, Cold Rolled Coils, Hot Rolled Steel, Aluminum Copper And So On.

Mesh Hole: 0.2-500mm

Hole Shapes: Round, Rectangular, Square, Triangle, Hexagonal, Diamond Fish Scale Hole, Lightly Pull Scale, Cross, Slotted And Special Patterns To Get Special Decoration Results.

Sheet Thickness: 0.15-20mm

Sheet Size: 1000×2000mm, 1220×2440mm, 3ft×8ft and Or As The Clients' Requirements.

Packing: Iron Pallet Or Wooden Pallet

Product Features
  • High quality smooth surface
  • Easy to process and install, good sound absorption
  • Durable and long service life
  • Attractive appearance and wide range of thickness available

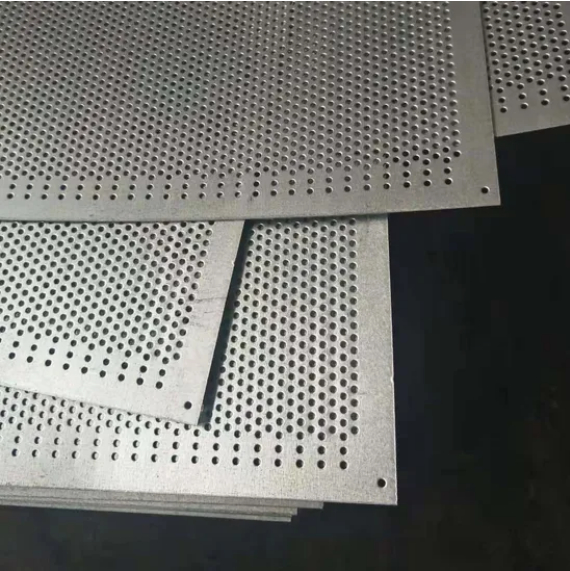

Round Hole Perforated Metal Mesh Stainless Steel Punching Mesh 0
Applications
  • Sound control Panels: Used in highway, railway, subway and other transportation facilities in the municipal environmental noise control barrier wall construction; also used in generator room, factories, and other noise sources where noise reduction is needed with installing sound-absorbing panels.
  • Shopping mall and hotel facade cladding panels, wall panels, sunshades, both interior and exterior decoration
  • Filters and strainers
  • Mining screens, sifting screen, sieves
  • Metal Floor Plate: Building stairs, walking floor, balconies, tables and chairs in beautifully decorated metal plate
  • Grills: For mechanical equipment guarding, protective cover, speaker mesh cover grilles
  • Ventilation sheet for grain storage with breathable mesh ventilation
  • Perforated tubes: Filter baskets and filter core in the welded tube forms

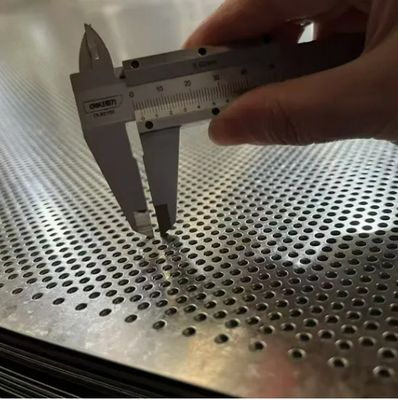

Round Hole Perforated Metal Mesh Stainless Steel Punching Mesh 1
Technical Specifications
Material Thickness (mm) Hole DIA. (mm) Pitch (mm) Width (m) Length (m) Punching rate (%) Weight (kg/sqm)
Roll plate 0.2 6 2 1 20 44 0.88
0.35 5 4 1 20 24 2
0.45 6 3 1 20 35 2.5
0.8 3 3 1 20 19.6 3
Flat plate 0.5 1 1 1 2 19.6 3.1
0.55 1.1 2.2 1 2 22.7 3.4
0.55 1.5 2.8 1 2 26 3.3
0.8 1.5 1.5 1 2 19.6 5
0.8 2 3.4 1 2 30.8 4.5
1.5 2 2 1 2 19.6 9.4
1.5 5 8 1 2 35.4 7.8
3 5 16 1 2 19.6 18.8
Stainless steel plate 0.5 1 1 1 2 19.6 3.14
0.8 1.5 1.5 1 2 19.6 5
1 2 2 1 2 19.6 6.28
2 5 16 1 2 19.6 6.28
Aluminum plate 0.5 1 1 1 2 19.6 1.08
0.8 3 3 1 2 19.6 1.72
1.6 2 2 1 2 19.6 3.24
3 4 16 1 2 19.6 4.23
Round Hole Perforated Metal Mesh Stainless Steel Punching Mesh 2
Round Hole Perforated Metal Mesh Stainless Steel Punching Mesh 3
